无源32.768KHZ晶振

产品图片	晶振型号	晶振封装(mm)	晶振频点(MHZ)	晶振频差(PPM)	晶振负载(PF)	工作温度(℃)	下载
	LCC 3215	3.2x1.5x0.8mm	32.768KHZ	±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 1610	1.6x1.0x0.5mm	32.768KHZ	±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 2012	2.0x1.2x0.6mm	32.768KHZ	±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 3080	3.0x8.0mm	32.768KHZ	±10PPM ±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 2060	2.0x6.0mm	32.768KHZ	±10PPM ±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 7015	7.0x1.5x1.4mm	32.768KHZ	±20PPM	9PF,12.5PF	-40℃~+85℃
	LCC 8038	8.0x3.8x2.5mm	32.768KHZ	±20PPM	9PF,12.5PF	-40℃~+85℃

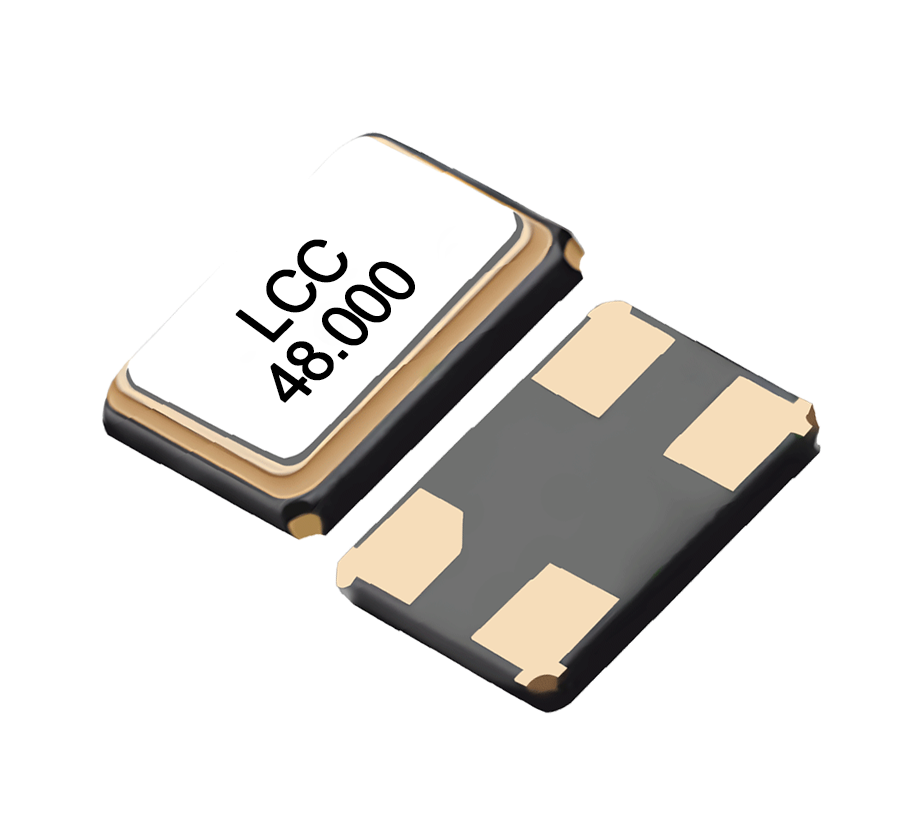

贴片晶振

产品图片	晶振型号	晶振封装(mm)	晶振频点(MHZ)	晶振频差(PPM)	晶振负载(PF)	工作温度(℃)	下载
	LCC 3225	3.2x2.5x0.7mm	8~54MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃
	LCC 2520	2.5x2.0x0.5mm	12~54MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃
	LCC 2016	2.0x1.6x0.5mm	16~54MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃
	LCC 1612	1.6x1.2x0.3mm	24~54MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃
	LCC 1210	1.2x1.0x0.4mm	16~96MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃
	LCC 5032	5.0x3.2x1.1mm	8~54MHZ	±10 ±30PPM	8PF,12PF	-40℃~+85℃

49S系晶振

产品图片	晶振型号	晶振封装(mm)	晶振频点(MHZ)	晶振频差(PPM)	晶振负载(PF)	工作温度(℃)	下载

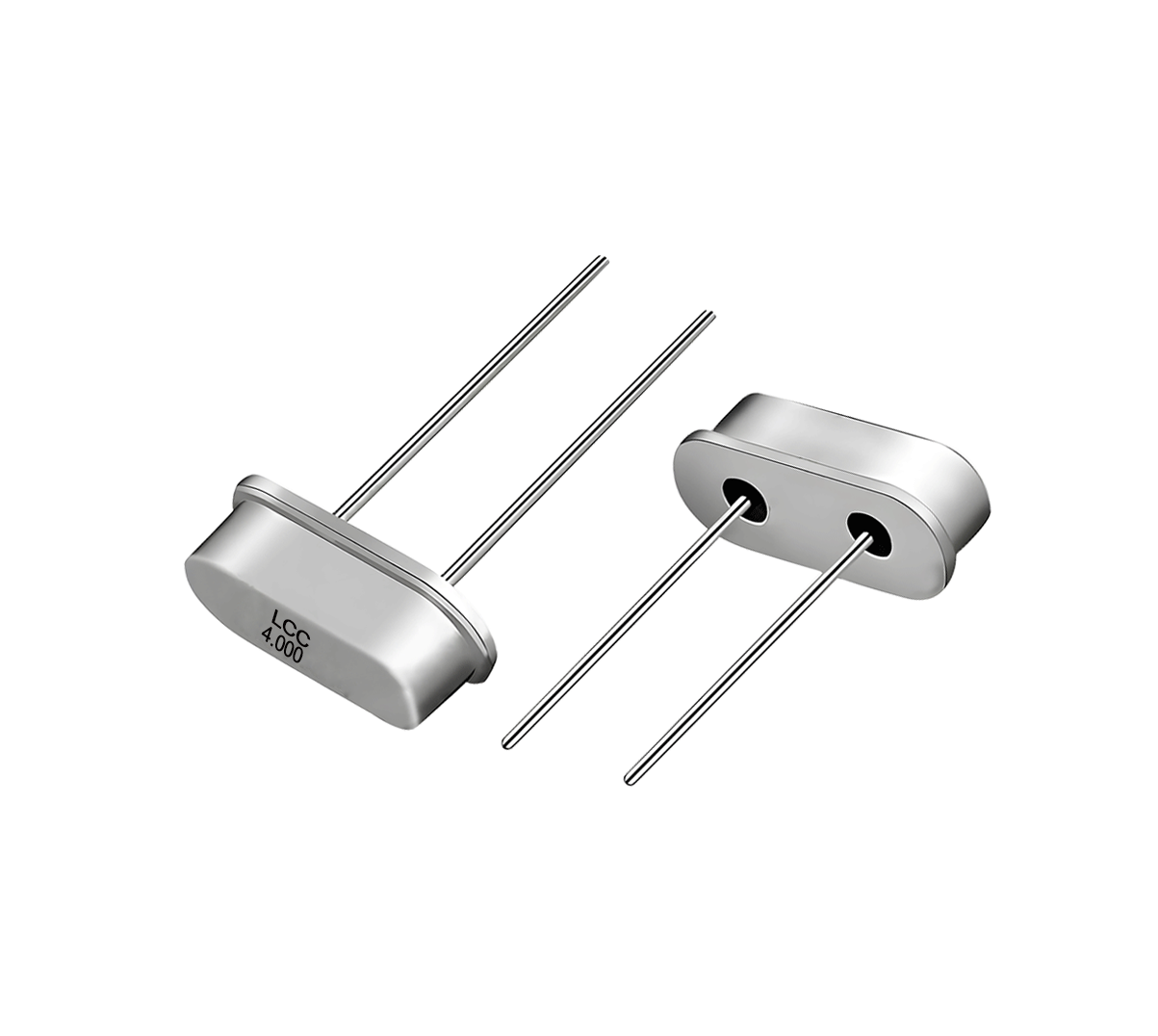

	LCC HC-49S	11.0x4.65x3.68mm	3.579545~100MHZ	±10 ±30PPM	12PF,20PF	-20℃~+70℃

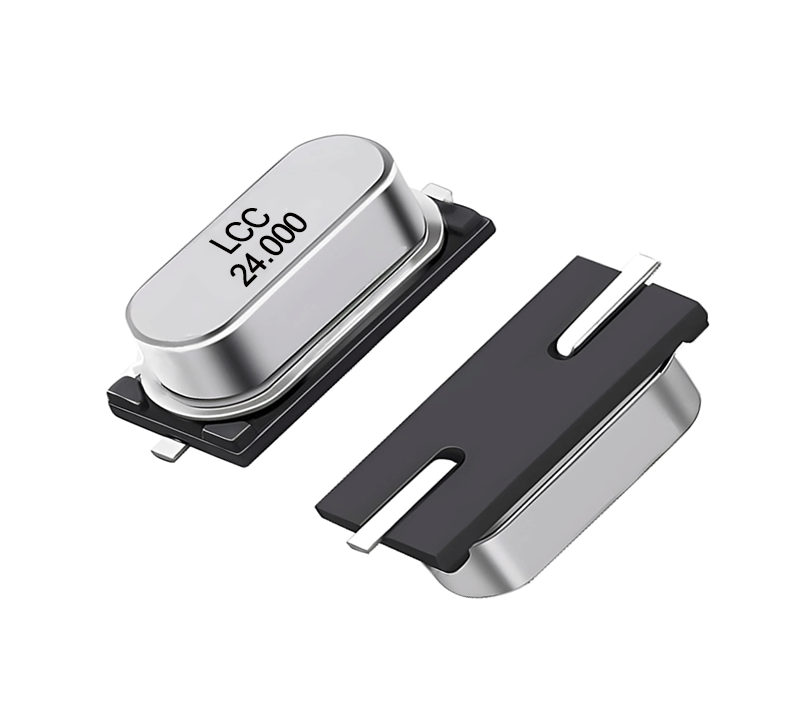

	LCC HC-49SMD	11.5x4.7x4.1mm	3.579545~54MHZ	±10 ±30PPM	12PF,20PF	-20℃~+70℃
	LCC 49SMD-Mini	6.1x4.0x2.0mm	8~50MHZ	±10 ±30PPM	12PF,20PF	-20℃~+70℃

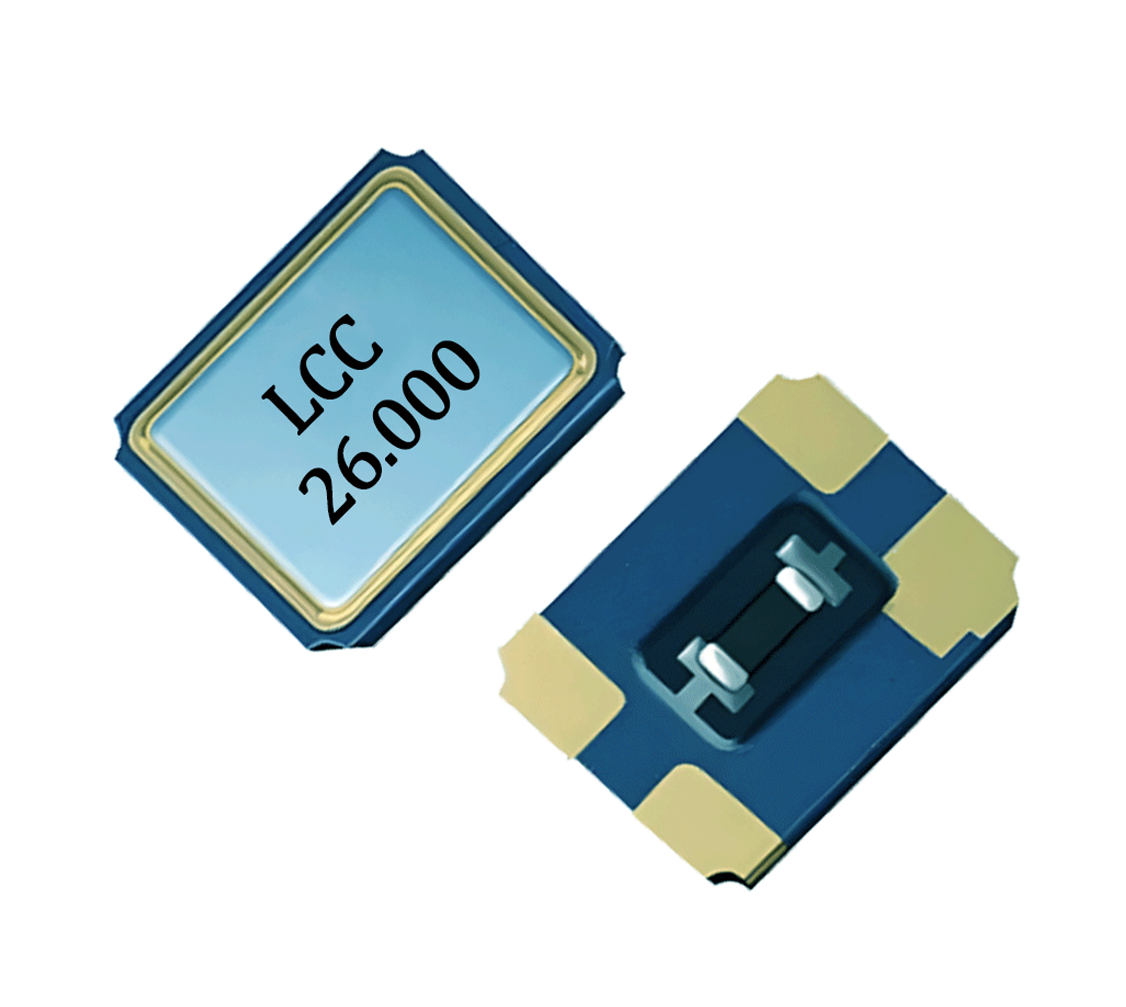

热敏晶振

产品图片	晶振型号	晶振封装(mm)	晶振频点(MHZ)	晶振频差(PPM)	晶振负载(PF)	工作温度(℃)	下载
	LCC 2016	2.0x1.6x0.5mm	19.2/26/38.4/52/76.8MHZ	±10PPM	8PF,12PF	-40℃~+85℃
	LCC 2520	2.5x2.0x0.5mm	19.2/26/38.4/52/76.8MHZ	±10PPM	8PF,12PF	-40℃~+85℃
